The BoycoT BBS
Billings, Montana
____________________________________________________________________
The BoycoT BBS runs on an Apple IIgs hooked up to a Windows box via custom DB9<->Din8 Null-Modem Cable. I wrote a program in Visual Basic on the Windows box that would connect the telnet port coming in from the internet to the COM port that the GS is hooked up to. This allows users to log into the BBS on the Apple IIgs from anywhere in the world via the internet. I say Apple IIgs because I have not yet tested it on a IIe with a SSC installed, but I plan on doing that soon, I just need to make a DB25<->DB9 null-modem cable.
My next project, after the BBS Gateway project is completed, is to do a similar project that will allow you to telnet out to the internet (to an Apple II BBS or any other telnet site) using Proterm or any other terminal program on the Apple II. Of course, the same principle applies, that the Apple II in question be connected to a "gateway" pc via null-modem cable.
______________________________________________________________________________
Apple IIgs Configuration
Apple IIgs Rom 3
Apple 1MB Memory Card
1GB Hard 2.5" Laptop Hard drive
ZipGS 7MHZ 64KB
Windows Box Configuration
Self-built Athlon 900Mhz System
512MB SDRam
30GB Primary Hard Drive
60GB Storage Hard Drive
Yamaha 16-10-40 CDRW Drive
Permanent Internet connection via Cable Modem
Running BBS Gateway (written by me) as the Gateway between the internet and the Apple IIgs.
______________________________________________________________________________________
My email: tolsen641@attbi.com
Click here to Log on to The BoycoT BBS
Check out my BBS Gateway (Work in Progress)
_______________________________________________________________________________________
Pictures follow: this could take a while to load...
The title screen for METAL
The infamous "null-modem" cable. As you can see, I haven't got it soldered together yet. The wires are just twisted together and hangin out.

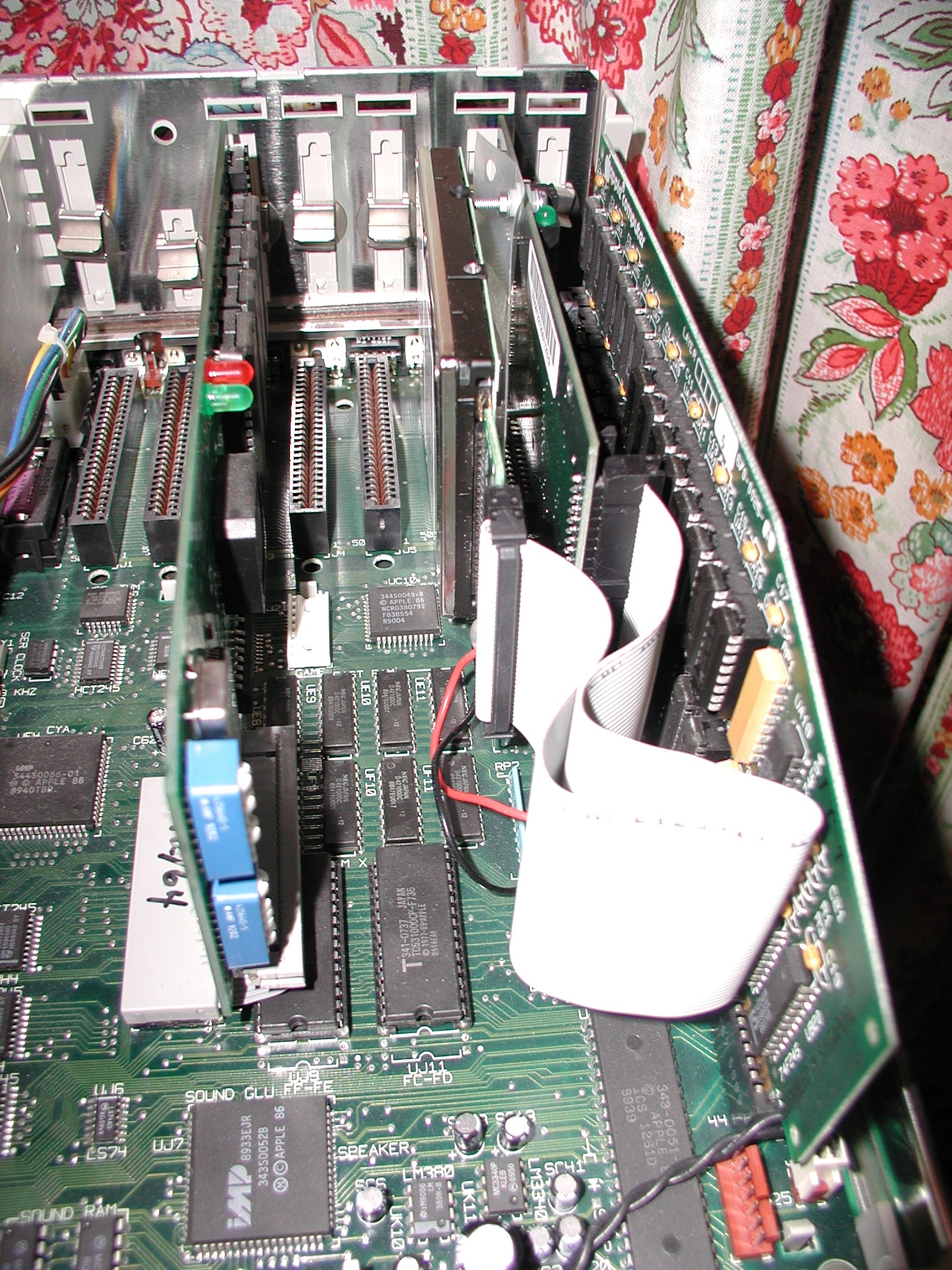

A close-up of the CFFA IDE Controller card, with the Laptop hard drive attached.
Another picture of the CFFA/Hard Drive. You already know that's a ZipGS card in slot 3.

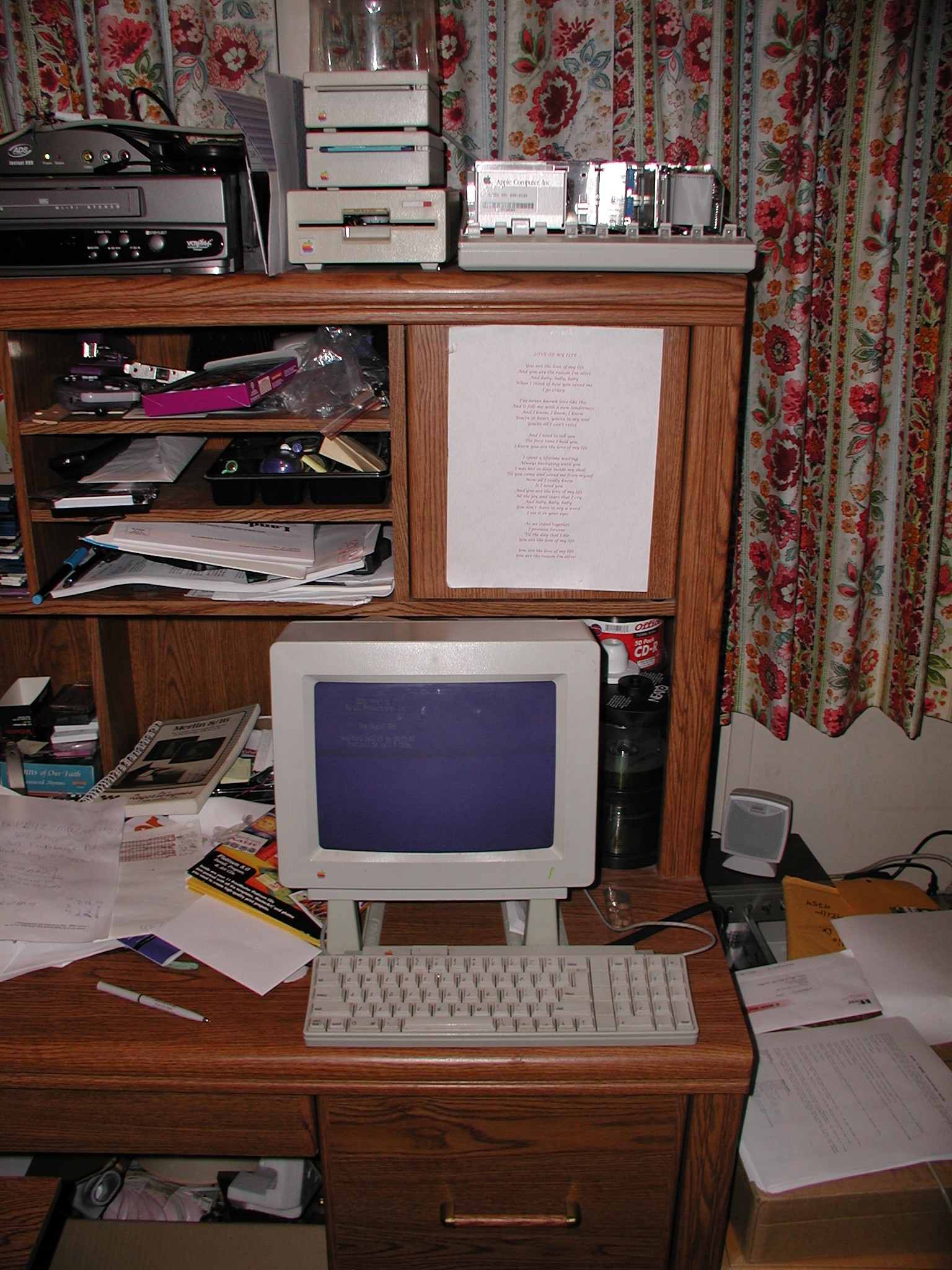

Quite a messy desk, don't you think?
